[ESP32] Create NVS encryption key and encrypt NVS partition

esp32-create-nvs-encryption-key-and-encrypt-nvs-partition
This article can be read in about 49 minutes.

Introduction.

Developing “Mia,” a talking cat-shaped robot that speaks dialect.

ミーア
おしゃべり猫型ロボット「ミーア」は、100以上の種類の豊かな表情で、悲しみや喜びを共有します。様々な性格(皮肉・おせっかい・ロマンチスト・天然)や方言(大阪弁・博多弁・鹿児島弁・広島弁)も話してくれます。ミーアとの暮らしで、毎日の生活をもっ...

Previously, in this article, I implemented moving AWS IoT-related configuration files from the LittleFS area to the NVS area.

However, as it is vulnerable in terms of security, we will attempt to implement NVS encryption in this case.

Also, as it stands, Flash Encryption and Secure Boot are not provided by the Arduino IDE and there are no plans to provide them in the future.

https://github.com/espressif/arduino-esp32/issues/9233

Therefore, as a preliminary step, the following implementation was made so that PlatformIO can handle not only Arduino but also ESP-IDF framework.

When the preliminaries are finally completed, we can begin NVS encryption.

Need for NVS encryption

Without NVS encryption, anyone with physical access to the flash chip could change, erase, or add key/value pairs.

Once NVS encryption is enabled, key/value pairs cannot be changed or added and recognized as valid pairs without knowing the corresponding NVS encryption key.

The details of NVS encryption for ESP32 are described below on the official EspressIf website.

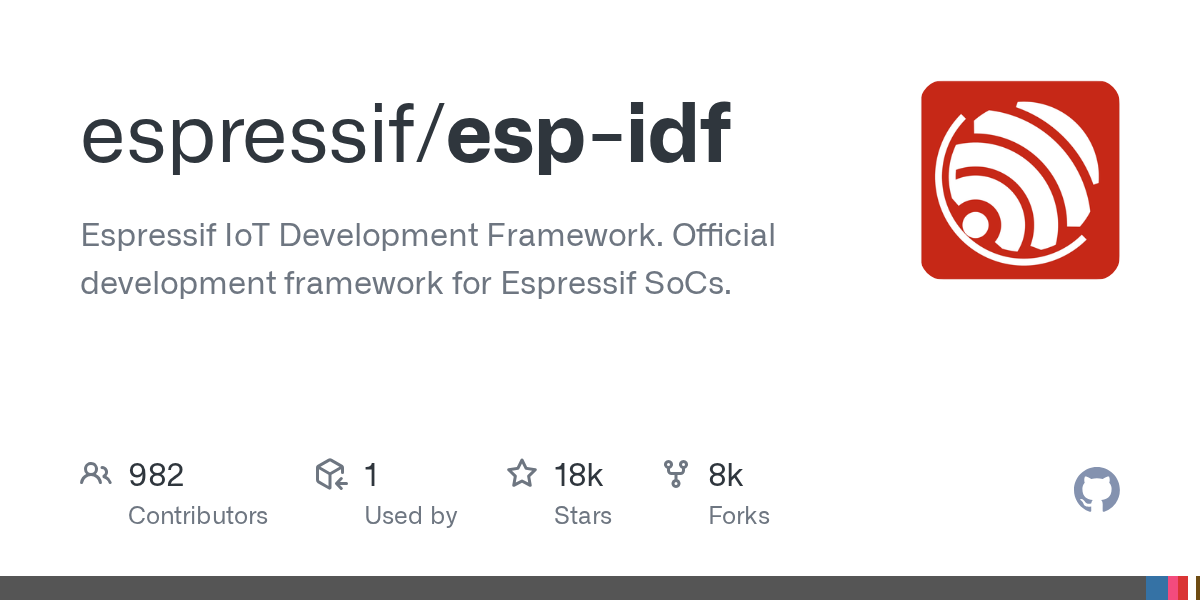

https://docs.espressif.com/projects/esp-idf/en/stable/esp32/api-reference/storage/nvs_encryption.html

Click here for an example

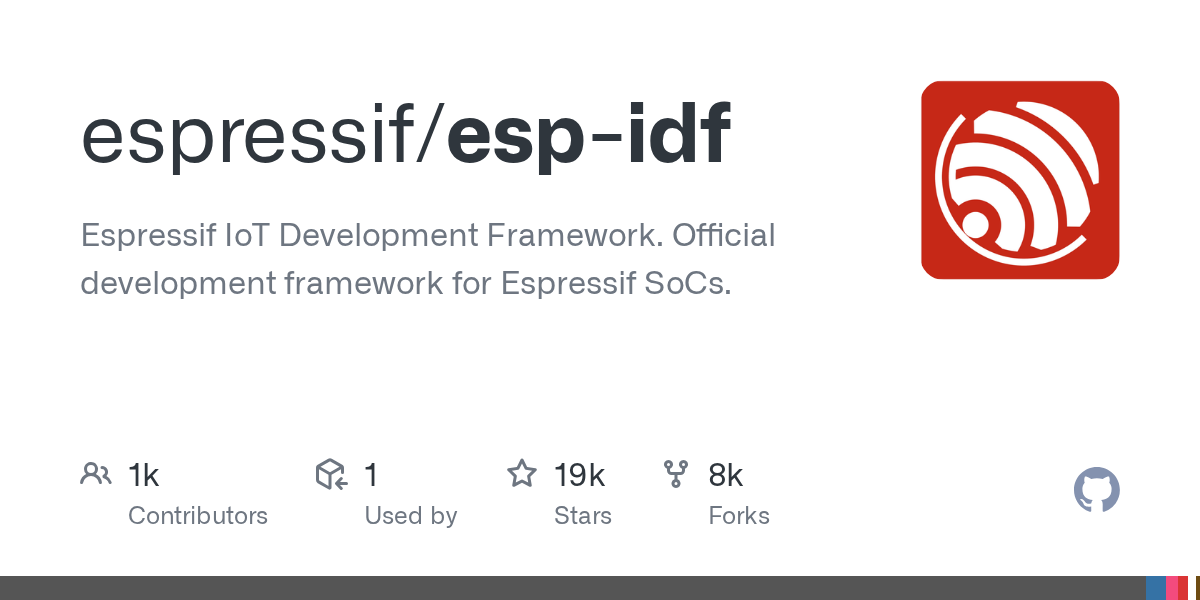

https://github.com/espressif/esp-idf/tree/c7bbfaee/examples/security/flash_encryption

However, since ESP32 is defined in the platform.ini file in the PlatformIO framework this time, we will proceed with the implementation in accordance with that file.

Creation of NVS Key Partition

First, a new NVS key partition is created as a dedicated partition for storing the encryption key required to use the NVS encryption function of ESP32.

By doing so, the nvs_flash_init API will automatically store the generated NVS encryption key in the NVS key partition. when NVS encryption is enabled, the nvs_flash_init API function will find the first NVS key partition, i.e., the data type and a partition of the nvs_keys subtype. The API function then automatically generates and stores the nvs key in that partition. A new key is generated and stored only if the corresponding key partition is empty.

So, it is necessary to specify data for Type and nvs_keys for Subtype as the NVS key partition.

https://docs.espressif.com/projects/esp-idf/en/latest/esp32/api-reference/storage/nvs_flash.html#nvs-key-partition

Partition table (partition.csv)

Plaintext
# Name, Type, SubType, Offset, Size, Flags
 nvs,      data, nvs,      0x9000, 0x5000,
 nvs_keys, data, nvs_keys, 0xe000, 0x2000, # Generate nvs key partition
 otadata, data, ota, 0x10000, 0x2000,
 app0, app, ota_0, 0x20000, 0x390000,
 app1, app, ota_1, 0x410000, 0x390000,
 spiffs, data, spiffs, 0x800000, 0x800000

Enable NVS encryption in sdkconfig

PlatformIO cannot use CONFIG_NVS_ENCRYPTION build flag
https://esp32.com/viewtopic.php?t=38039

Arduino IDE does not support flash encryption and secure boot
https://esp32.com/viewtopic.php?t=10029

The above is the reason why I made framework compatible with espidf in the following article.

To add settings directly to the sdkconfig file, check or add the following settings

C++
# Enable Flash encryption
 CONFIG_SECURE_FLASH_ENC_ENABLED=y

 # Enable Flash encrypti on  mode
 CONFIG_SECURE_FLASH_ENCRYPTION_MODE_DEVELOPMENT=y # In development mode
 #  CONFIG_SECURE_FLASH_ENCRYPTION_MODE_RELEASE=y # For release mode

 # Enable NVS encryption
 CONFIG_NVS_ENCRYPTION=y

NVS encryption key generation

Creating an Encrypted NVS Partition

The encrypt command in nvs_partition_gen.py can be used to generate NVS encryption keys and create encrypted NVS partitions.

Execute the following command

Python
python nvs_partition_gen.py encrypt sample_singlepage_blob.csv sample_encr.bin 0x3000 --keygen --keyfilesample_keys.bin

This will generate an encrypted NVS partition ( sample_encr.bin ) from the specified CSV file and simultaneously generate the encryption key ( sample_keys.bin) under the keys/ directory.

https://docs.espressif.com/projects/esp-idf/en/stable/esp32/api-reference/storage/nvs_partition_gen.html

Python
# extra_script.py
 import os
 import subprocess
 from SCons.Script import Import

 Import("env")

 # Generate NSS encryption key
 def generate_nvs_key(source, target, env)
     print("Generating NVS encryption key... ")
    key_file = "nvs_keys.bin"
    csv_file = "certificates/nvs.csv"
    bin_file = "certificates/encrypted_nvs_partition.bin"
    size = "0x5000"

    command =  [
         "python",.
        os.path.join(os.getenv('IDF_PATH'), 'components', 'nvs_flash', 'nvs_partition_generator', 'nvs_partition_gen.py'),.
         "encrypt",.
        csv_file,
        bin_file,
        size,.
         "--keygen", key_file, size, csv_file, bin_file, size, csv_file
         "--keyfile", key_file
     ]
    result = subprocess.run(command,  check=True)
     if result.returncode !=  0 :.
         print("Error: NVS encryption key generation failed.")
     else: print("NVS encryption key generation failed.
         print("NVS encryption key generated successfully.")

 # Generate NVS encryption key
 env.AddPreAction("upload", generate_nvs_key)

I ran this command and confirmed that nvs_keys.bin was generated under the keys/ directory.

NVS partition creation and encryption

Next, encrypt the NVS partition using the generated NVS encryption key, using the encrypt and –inputkey commands, passing the generated NVS encryption key as the –inputkey argument.

Python
# generate and encrypt NVS partition
 def generate_encrypted_nvs_partition(source, target, env)
     print("Generating and encrypting NVS partition... ")
    csv_file = "certificates/nvs.csv"
    bin_file = "certificates/encrypted_nvs_partition.bin"
    key_file = "keys/nvs_keys.bin"
    size = "0x5000"

    command =  [
         "python",.
        os.path.join(os.getenv('IDF_PATH'), 'components', 'nvs_flash', 'nvs_partition_generator', 'nvs_partition_gen.py'),.
         "encrypt",.
        csv_file,
        bin_file,
        size,.
         "--inputkey", key_file
     ]
    result = subprocess.run(command,  check=True)
     if result.returncode !=  0 :.
         print("Error: NVS partition generation and encryption failed.")
     else: print("NVS partition generated")
         print("NVS partition generated and encrypted successfully.")

 # Generate encrypted NVS partition using NVS encryption key
 env.AddPreAction("upload", generate_encrypted_nvs_partition)

Install cryptography package

Note that the nvs_partition_gen.py script depends on the cryptography package, so install it (if you get a warning). In the case of under virtual environment, see below.

ShellScript
python  -m  venv venv
 source venv/bin/activate
 pip install cryptography

Add cryptography to requirements.txt.

Detected overlap at address: 0x8000 for file error response

When built, the following error appeared

ShellScript<span role="button" tabindex="0" data-code="esptool write_flash: error: argument <address>
esptool write_flash: error: argument <address> <filename>: Detected overlap at address:  0x8000  for file:  /Users/ky/dev/clocky/  clocky_platformio/.pio/build/debug/partitions.bin

I googled and found that someone else had encountered the same error, even though the partition table should not have caused the overlap.

https://community.platformio.org/t/esp-boot-partitions-overlap-error-help-with-compiler-config-options/12477

They have two solutions.

  • Increase CONFIG_PARTITION_TABLE_OFFSET option from 0x8000 -> 0x10000
  • CONFIG_LOG_BOOTLOADER_LEVELVERBOSE to INFO

Once generated, try outputting the .bin file along with its size

ShellScript
 ~/dev/clocky/clocky_platformio/.pio/build/debug   feat-nvs-encryption  ?  ⍟16   ls   -la   * .bin                      3933  12:27:49
 -rw-r--r--   1   ky   staff    36192   6    3  10:30 bootloader.bin
 -rw-r--r--   1   ky   staff  2973488   6    3  10:31 firmware_debug.bin
 -rw-r--r--   1   ky   staff     8192   6    3  10:30  ota_data_ini tial .bin
 -rw-r--r--   1   ky   staff     3072   6    3  10:30 partitions.bin

The size of the bootloader.bin built with verbose is 36192 bytes, larger than the usual 0x8000 - 0x1000 = 28672 bytes.

So, if the offset initions.bin starts at the default 0x8000, it overlaps with the end of the bootloader, causing an overlap error.

If CONFIG_PARTITION_TABLE_OFFSET is changed to 0x10000, the partition table will be placed at the address 0x10000. In this case, the space allocated to the boot loader is 0x10000 - 0x1000 = 60KB = 61,440 bytes > 36192 bytes, a sufficient amount.

Also, need to change the offset of the partition table

The partitions set in the partition table are followed by the following two.

  1. Boot loader: 0x1000 to 0x8000 (typically 32KB)
  2. Partition table: 0x8000 to 0x9000 (4KB)

Therefore, nvs is modified by offsetting the sum of bootloader.bin and partitions.bin. Since the initial offset is shifted, the subsequent partitions are also shifted by that amount.

ShellScript
# Name, Type, SubType, Offset, Size, Flags
 nvs,      data,  nvs ,       0x11000 ,  0x5 000
 nvs_keys, data,  nvs_keys ,  0x16000 ,  0x2000 , encrypted
 otadata,   data,  ota ,       0x18000 ,  0x2000,
 app0,     app,   ota_0 ,     0x20000 ,  0x390 000 ,
 app1,     app,   ota_1 ,     0x410000 ,  0x390 000 ,
 spiffs,   data, spiffs,    0x7A0000 ,  0x86 0000

I changed to the above settings and rebuilt, and the build started successfully.

ShellScript
generate_nvs_partition(["upload"], [".pio/build/debug/firmware_debug.bin"])
 Generating NVS partition with encryption...

 Created encryption keys: ===>   /Users/ky/dev/clocky/clocky_platformio/keys/nvs_keys .bin

 Creating NVS binary with version:  V2   -  Multipage Blob Support Enabled

 Created NVS binary: ===>  /Users/ky/dev/clocky/clocky_platformio/certificates/certs. bin
 NVS partition generated successfully.
 Looking for upload port...
 Auto-detected:  /dev/cu .wchusbserial1420
 Uploading .pio/build/debug/firmware_debug.bin
 esptool.py  v4 .5.1
 Serial port  /dev/cu .wchusbserial1420
 Connecting....
 Chip is ESP32-D0WD-V3 (revision v3.1)
 Features: WiFi,  BT ,  Dual  Core, 240MHz, VRef calibration in  efuse ,  Coding
Scheme None
 Crystal is 40MHz
 MAC:  d8 :13:2a:25:3d:9c
 Uploading stub...
 Running stub...
 Stub running...
 Configuring flash size...

Update flash script for NVS partition

Compared to flash_nvs_partition() created in the previous article here, the offset of the nvs area has changed from 0x09000 to 0x11000, so the start position of writing has been modified.

Python
# extra_script.py
 import os
 import subprocess
 from SCons.Script import Import

 Import("env")

 def flash_nvs_partition(source, target, env)
     print("Flashing NVS partition with encryption... ")

    bin_path = os.path.join(env['PROJECT_DIR'], 'certificates', 'certs.bin')

    command =  [
         "python", "-m", "esptool",.
         "--chip", "esp32",.
         "--port", env['UPLOAD_PORT'],.
        "--baud", str(env['UPLOAD_SPEED']),
         "write_flash", "0x11000", bin_path,.
     ]
     try:.
        result = subprocess.run(command,  check=True, stdout=subprocess.PIPE, stderr=subprocess.)
         print("NVS partition flashed successfully.")
     except subprocess.CalledProcessError as e:.
         print(f"Error: NVS partition flashing failed. Error message: {e.stderr.decode()}")

 env.AddPostAction("upload", flash_nvs_partition)

Enable encryption during NVS initialization

The initNVS function for NVS initialization can be left as is.

This function initializes NVS and, if necessary, erases and reinitializes the NVS partition.

nvs_flash_init automatically handles encryption if NVS encryption is enabled. No additional processing is required since the necessary key generation and settings are done internally during initialization.

C++<span role="button" tabindex="0" data-code="#include "nvs_helper.h" tl::expected
#include "nvs_helper.h"

 tl::expected<void, String> NVSHelper::initNVS()  {
     esp_err_t err =  nvs_flash_init ();
     if (err == ESP_ERR_NVS_NO_FREE_PAGES || err == ESP_ERR_NVS_NEW_VERSION_FOUND)  {
         ESP_ERROR_CHECK(nvs_flash_erase());
        err =  nvs_flash_init ();
     }
     if (err != ESP_OK)  {
         return tl::make_unexpected("Failed to initialize NVS"); }
     }
     return  {} ; }
 }

operation check

The following log was displayed when I built it

  • NVS partition is encrypted: “I (1662) nvs: NVS partition “nvs” is encrypted.”
  • NVS key generation: “I (1463) nvs: NVS key partition empty, generating keys”
  • Flushed successfully: “NVS partition flashed successfully.”

looking (feeling) safe

ShellScript<span role="button" tabindex="0" data-code=" — Quit: Ctrl+C | Menu: Ctrl+T | Help: Ctrl+T followed by Ctrl+H 20:35:01.547 > I (1789) flash_encrypt: bootloader encrypted successfully 20:35:01.547 > I (1838) flash_encrypt: partition table encrypted and loaded successfully 20:35:01.547 > I (1839) flash_encrypt: Encrypting partition 1 at offset 0x16000 (length 0x2000)… 20:35:01.547 > I (1936) flash_encrypt: Done encrypting 20:35:01.547 > I (1936) flash_encrypt: Encrypting partition 2 at offset 0x18000 (length 0x2000)… 20:35:01.547 > I (2003) flash_encrypt: Done encrypting 20:35:01.547 > I (2003) esp_image: segment 0: paddr=00020020 vaddr=3f400020 size=18518ch (1593740) map 20:35:01.547 > I (2582) esp_image: segment 1: paddr=001a51b4 vaddr=3ffb0000 size=049ech ( 18924) 20:35:01.547 > I (2589) esp_image: segment 2: paddr=001a9ba8 vaddr=40080000 size=06470h ( 25712) 20:35:01.547 > I (2598) esp_image: segment 3: paddr=001b0020 vaddr=400d0020 size=136bach (1272748) map 20:35:01.547 > I (3059) esp_image: segment 4: paddr=002e6bd4 vaddr=40086470 size=0f320h ( 62240) 20:35:01.547 > I (3082) flash_encrypt: Encrypting partition 3 at offset 0x20000 (length 0x390000)… 20:35:34.033 > I (40553) flash_encrypt: Done encrypting 20:35:34.036 > E (40553) esp_image: image at 0x410000 has invalid magic byte (nothing flashed here?) 20:35:34.044 > I (40555) efuse: BURN BLOCK0 20:35:34.052 > I (40570) efuse: BURN BLOCK0 – OK (all write block bits are set) 20:35:34.058 > I (40570) flash_encrypt: Flash encryption completed 20:35:34.063 > I (40573) boot: Resetting with flash encryption enabled… 20:35:34.072 > ets Jul 29 2019 12:21:46 20:35:34.072 > 20:35:34.072 > rst:0x3 (SW_RESET),boot:0x13 (SPI_FAST_FLASH_BOOT) 20:35:34.078 > configsip: 0, SPIWP:0xee 20:35:34.080 > clk_drv:0x00,q_drv:0x00,d_drv:0x00,cs0_drv:0x00,hd_drv:0x00,wp_drv:0x00 20:35:34.086 > mode:DIO, clock div:2 20:35:34.089 > load:0x3fff00b8,len:10988 20:35:34.091 > ho 0 tail 12 room 4 20:35:34.091 > load:0x40078000,len:21276 20:35:34.094 > load:0x40080400,len:3836 20:35:34.097 > entry 0x4008069c 20:35:34.167 > I (56) boot: ESP-IDF 4.4.7 2nd stage bootloader 20:35:34.167 > I (56) boot: compile time 20:31:54 20:35:34.167 > I (56) boot: Multicore bootloader 20:35:34.167 > I (60) boot: chip revision: v3.1 20:35:34.167 > I (64) boot.esp32: SPI Speed : 40MHz 20:35:34.167 > I (69) boot.esp32: SPI Mode : DIO 20:35:34.167 > I (73) boot.esp32: SPI Flash Size : 16MB 20:35:34.167 > I (78) boot: Enabling RNG early entropy source… 20:35:34.167 > I (83) boot: Partition Table: 20:35:34.167 > I (87) boot: ## Label Usage Type ST Offset Length 20:35:34.167 > I (94) boot: 0 nvs WiFi data 01 02 00011000 00005000 20:35:34.167 > I (102) boot: 1 nvs_keys NVS keys 01 04 00016000 00002000 20:35:34.167 > I (109) boot: 2 otadata OTA data 01 00 00018000 00002000 20:35:34.171 > I (117) boot: 3 app0 OTA app 00 10 00020000 00390000 20:35:34.177 > I (124) boot: 4 app1 OTA app 00 11 00410000 00390000 20:35:34.185 > I (132) boot: 5 spiffs Unknown data 01 82 007a0000 00860000 20:35:34.194 > I (139) boot: End of partition table 20:35:34.197 > I (144) esp_image: segment 0: paddr=00020020 vaddr=3f400020 size=18518ch (1593740) map 20:35:34.792 > I (748) esp_image: segment 1: paddr=001a51b4 vaddr=3ffb0000 size=049ech ( 18924) load 20:35:34.801 > I (756) esp_image: segment 2: paddr=001a9ba8 vaddr=40080000 size=06470h ( 25712) load 20:35:34.811 > I (767) esp_image: segment 3: paddr=001b0020 vaddr=400d0020 size=136bach (1272748) map 20:35:35.287 > I (1243) esp_image: segment 4: paddr=002e6bd4 vaddr=40086470 size=0f320h ( 62240) load 20:35:35.325 > I (1281) boot: Loaded app from partition at offset 0x20000 20:35:35.330 > I (1281) boot: Checking flash encryption… 20:35:35.333 > I (1281) flash_encrypt: flash encryption is enabled (3 plaintext flashes left) 20:35:35.341 > I (1288) boot: Disabling RNG early entropy source… 20:35:35.347 > I (1305) cpu_start: Multicore app 20:35:35.353 > I (1305) cpu_start: Pro cpu up. 20:35:35.355 > I (1306) cpu_start: Starting app cpu, entry point is 0x400820d8 20:35:35.364 > I (0) cpu_start: App cpu up. 20:35:35.370 > I (1324) cpu_start: Pro cpu start user code 20:35:35.373 > I (1324) cpu_start: cpu freq: 160000000 20:35:35.378 > I (1324) cpu_start: Application information: 20:35:35.384 > I (1329) cpu_start: Project name: clocky_platformio 20:35:35.389 > I (1334) cpu_start: App version: 0.2.0-64-g45f6856-dirty 20:35:35.395 > I (1341) cpu_start: Compile time: Jun 3 2024 20:30:50 20:35:35.400 > I (1347) cpu_start: ELF file SHA256: 792351b48ecf68fc… 20:35:35.408 > I (1353) cpu_start: ESP-IDF: 4.4.7 20:35:35.411 > I (1358) cpu_start: Min chip rev: v0.0 20:35:35.417 > I (1363) cpu_start: Max chip rev: v3.99 20:35:35.422 > I (1368) cpu_start: Chip rev: v3.1 20:35:35.425 > I (1373) heap_init: Initializing. RAM available for dynamic allocation: 20:35:35.433 > I (1380) heap_init: At 3FFAE6E0 len 00001920 (6 KiB): DRAM 20:35:35.439 > I (1386) heap_init: At 3FFBA370 len 00025C90 (151 KiB): DRAM 20:35:35.447 > I (1392) heap_init: At 3FFE0440 len 00003AE0 (14 KiB): D/IRAM 20:35:35.453 > I (1399) heap_init: At 3FFE4350 len 0001BCB0 (111 KiB): D/IRAM 20:35:35.459 > I (1405) heap_init: At 40095790 len 0000A870 (42 KiB): IRAM 20:35:35.467 > I (1413) spi_flash: detected chip: generic 20:35:35.470 > I (1416) spi_flash: flash io: dio 20:35:35.475 > W (1420) flash_encrypt: Flash encryption mode is DEVELOPMENT (not secure) 20:35:35.481 > I (1430) gpio: GPIO[27]| InputEn: 1| OutputEn: 0| OpenDrain: 0| Pullup: 0| Pulldown: 0| Intr:0 20:35:35.492 > I (1438) cpu_start: Starting scheduler on PRO CPU. 20:35:35.497 > I (0) cpu_start: Starting scheduler on APP CPU. <span style="background-color: rgb(251, 243, 219);">20:35:35.503 > I (1463) nvs: NVS key partition empty, generating keys</span> 20:35:35.685 > I (1650) nvs: NVS partition I (1654) gpio: GPIO[27]| InputEn: 1| OutputEn: 0| OpenDrain: 0| Pullup: 0| Pulldown: 0| Intr:5 20:35:35.697 > Starting 20:35:35.697 > After Starting – Available heap size: 252572 bytes <span style="background-color: rgb(251, 243, 219);">20:35:35.703 > I (1662) nvs: NVS partition "nvs" is encrypted.

 --- Quit: Ctrl+C  |  Menu: Ctrl+T  |  Help: Ctrl+T followed by Ctrl+H
 20:35: 01.547  >  I  (1789) flash_encrypt: bootloader encrypted successfully
 20:35: 01.547  >  I  (1838) flash_encrypt: partition table encrypted and loaded successful ly
 20:35:01. 547 >  I  (1839) flash_encrypt: Encrypting partition 1 at offset 0x16000 (length  0x2000 )...
 20: 35:01.547 >  I  (1936) flash_encrypt: Done encrypting
 20:35:01. 547 >  I (1936  ) flash_encrypt: Encrypting partition 2 at offset 0x18000 (length  0x2000 )...
 20: 35:01.547  >  I (  2003) flash_encrypt: Done encrypting
 20:35: 01.547  >  I (2003  ) esp_image: segment 0: paddr=00020020 vaddr=3f400020 size=18518ch (1593740) map
 20: 35:01.547 >  I  (2582) esp_image: segment 1: paddr=001a51b4 vaddr=3ffb0000 size=049ech ( 18924)
20:35:01.547 >  I  (2589) esp_image: segment 2: paddr=001a9ba8 vaddr=40080000 size=06470h ( 25712)
20:35:01.547 >  I  (2598) esp_image: segment 3: paddr=001b0020 vaddr=400d0020 size=136bach (1272748) map
 20 :35:01.547 >  I  (3059) esp_image: segment 4: paddr=002e6bd4 vaddr=40086470 size=0f320h (  622 40 )
20:35:01.547 >  I  (3082) flash_encrypt: Encrypting partition 3 at offset 0x20000 (length  0x390000 )...
 20: 35:34.033 >  I  (40553) flash_encrypt: Done encrypting
 20:35:34. 036 >  E  (40553) esp_image: image at 0x410000 has invalid magic byte (nothing flashed here?)
 20:35:34.044 >  I  (40555) efuse: BURN BLOCK0
 20:35: 34.052 >  I (  40570) efuse: BURN BLOCK0 - OK (all write block  bits  are set)
 20:35:34.058 >  I  (40570) flash_encrypt: flash encryption completed
 20:35:34. 063 >  I  (40573) boot: Resetting with flash encryption enabled...
 20:35:34. 072 > ets Jul 29 2019 12:21:46
 20:35:34. 072 >
20:35:34. 072 >  rst :0x3 (SW_RESET),boot:0x13 (SPI_FAST_FLASH_BOOT)
 20:35: 34.078 > configsip:  0 , SPIWP:0xee
 20:35:34. 080 > clk_drv:0x00,q_drv:0x00,d_drv:0x00,cs0_drv:0x00,hd_drv:0x00,wp_drv:0x00
 20: 35:34.086 > mode:DIO, clock div:2
 20:35:34. 089 > load:0x3fff00b8,len:10988
 20:35:34 .091 > ho  0  tail 12 room  4
 20:35:34. 091 > load:0x40078000,len:21276
 20:35:34. 094 > load:0x40080400,len:3836
 20:35:34. 097 > entry  0x40080 69c
 20:35:34. 167 >  I  (56) boot: ESP-IDF 4.4.7 2nd stage bootloader
 20:35:34 .167 >  I (56  ) boot: compile time 20:31:54
 20:35:34 .167 >  I (56)  boot: Multicore bootloader
 20:35: 34.167 >  I (  60) boot: chip revision: v3.1
 20: 35:34.167  >  I  (64) boot.esp32: SPI Speed : 40MHz
 20:35:34. 167 >  I  (69) boot.esp32: SPI Mode : DIO
 20:35:34. 167 >  I  (73) boot.esp32: SPI Flash Size : 16MB
 20:35:34. 167 >  I  (78) boot: Enabling RNG early entropy source...
 20:35:34. 167 >  I  (83) boot: Partition Table
 20:35:34. 167 >  I (  87) boot: ## Label Usage Type ST Offset Length
 20:35:34. 167 >  I (  94) boot: 0 nvs WiFi data 01 02 00011000 00005000
 20:35:34. 167 >  I  (102) boot: 1 nvs_keys NVS keys 01 04 00016000 00002000
 20: 35:34.167  >  I (  109) boot: 2 otadata OTA data 01 00 00018000 00002000
 20:35:34. 171 >  I  (117) boot: 3 app0 OTA app 00 10 00020000 00390000
 20:35: 34.177 >  I  (124) boot: 4 app1 OTA app 00 11 00410000 00390000
 20:35: 34.185 >  I  (132) boot: 5 spiffs Unknown data 01 82 007a0000 00860000
 20:35: 34.194 >  I  (139) boot: End of partition table
 20:35:34 .197 >  I  (144) esp_image: segment 0: paddr=00020020 vaddr=3f400020 size=18518ch (1593740) map
 20:35:34.792 >  I  (748) esp_image: segment 1: paddr=001a51b4 vaddr=3ffb0000 size=049ech ( 18924) load
 20:35:34.801 >  I  (756) esp_image: segment 2: paddr=001a9ba8 vaddr=40080000 size=06470h ( 25712) load
 20:35:34.811 >  I  (767) esp_image: segment 3: paddr=001b0020 vaddr=400d0020 size=136bach (1272748) map
 20:35:35.287 >  I  (1243) esp_image: segment 4: paddr=002e6bd4 vaddr=40086470 size=0f320h (  62240 ) load
 20:35:35.325 >  I  (1281) boot: Loaded app from partition at offset 0x20000
 20:35: 35.330 >  I (1281  ) boot: Checking flash encryption...
 20:35: 35.333 >  I (1281  ) flash_encrypt: flash encryption is enabled (3 plaintext flashes left)
 20:35: 35.341 >  I  (1288) boot: Disabling RNG early entropy source...
 20:35:35. 347 >  I  (1305) cpu_start: Multicore app
 20: 35:35.353 >  I (1305  ) cpu_start: Pro cpu up.
 20:35: 35.355 >  I  (1306) cpu_start: Starting app cpu, entry point is 0x400820d8
 20:35: 35.364 >  I  (0) cpu_start: App cpu up.
 20:35: 35.370 >  I  (1324) cpu_start: Pro cpu start user code
 20:35: 35.373 >  I (1324  ) cpu_start: cpu freq: 160000000
 20:35: 35.378 >  I (1324  ) cpu_start: Application information
 20:35: 35.384 >  I  (1329) cpu_start: Project name: clocky_platformio
 20:35: 35.389 >  I  (1334) cpu_start: App version: 0.  2.0-64-g45f6856-dirty
 20:35: 35.395 >  I (  1341) cpu_start: Compile time: Jun 3 2024 20:30:50
 20:35:35.400 >  I  (1347) cpu_start: ELF file SHA256: 792351b48ecf68fc...
 20:35:35.408 >  I  (1353) cpu_start: ESP-IDF: 4.  4.7
 20:35:35. 411 >  I  (1358) cpu_start: Min chip rev: v0.0
 20:35:35. 417 >  I (  1363) cpu_start: Max chip rev: v3.99
 20:35:35. 422 >  I (1368  ) cpu_start: Chip rev: v3.1
 20:35:35. 425 >  I  (1373) heap_init: Initializing. RAM available for dynamic allocation
 20:35:35. 433 >  I  (1380) heap_init: At 3FFAE6E0 len 00001920 (6  KiB ): DRAM
 20: 35:35.439 >  I  (1386) heap_init: At 3FFBA370 len 00025C90 (151  KiB ): DRAM
 20: 35:35.447 >  I  (1392) heap_init: At 3FFE0440 len 00003AE0 (14  KiB ): D/IRAM
 20:35:35.453 >  I  (1399) heap_init: At 3FFE4350 len 0001BCB0 (111  KiB ): D/IRAM
 20: 35:35.459 >  I  (1405) heap_init: At 40095790 len 0000A870 (42  KiB ):  IRAM
 20: 35:35.467 >  I  (1413) spi_flash: detected chip: generic
 20:35:35. 470 >  I  (1416) spi_flash: flash io: dio
 20:35: 35.475 >  W  (1420) flash_encrypt: flash encryption mode is DEVELOPMENT (not secure)
 20:35:35. 481 >  I  (1430) gpio: GPIO[27]| InputEn:  1| OutputEn:  0| OpenDrain:  0| Pullup:  0|  Pulldo wn :  0|
Intr:0
20:35:35.492 >  I  (1438) cpu_start: Starting scheduler on PRO CPU.
 20:35:35.497 >  I  (0) cpu_start: Starting scheduler on APP CPU.
 <spanstyle="background-color: rgb(251, 243, 219);">20:35:35.503 > I (1463) nvs: NVS key partition empty, generating keys&lt;/span>
 20:35:35. 685 >  I  (1650) nvs: NVS partition I (1654) gpio: GPIO[27]| InputEn:  1| OutputEn:  0| OpenDrain:  0| Pullup:  0|  Pulldo wn :  0|
Intr:5
20 :35:35.697 > Starting
 20:35: 35.697 > After Starting  -  Available heap size: 252572 bytes
 <spanstyle="background-color: rgb(251, 243, 219);">20:35: 35.703 > I (1662) nvs: NVS partition "nvs" is encrypted.</span>

But then, when initializing NVS and calling NVS area data (certificates, etc.), ESP_ERR_NVS_CORRUPT_KEY_PART error occurred.)

ShellScript
10:08:46.929 >  E  (1508) nvs: Failed to read NVS security cfg: [0x1117] (ESP_ERR_NVS_CORRUPT_KEY_PART)
 10:08:46.938 >  Failed  to initialize NVS
 10:08:46. 943 >  E  (1528) nvs: Failed to read NVS security cfg: [0x1117] (ESP_ERR_NVS_CORRUPT_KEY_PART)
 10:08:46.951 > failed to load app config:  Failed  to initialize NVS
 10:08:46. 954 >  Guru  Meditation Error: Core   1  panic' ed (LoadProhibited). Exception was unhandled.
 Exception was unha  ndled .
 10:08:46.962 > Core 1 register dump:.
 10:08:46.965 > PC : 0x400d7046 PS : 0x00060c30 A0 : 0x800e5ea6 A1 : 0x3ffc1d70
 10:08:46.973 > A2 : 0x3ffb4a20 A3 : 0x00000001 A4 : 0x0000008b A5 : 0x00000000
 10:08:46.979 > A6 : 0x00000001 A7 : 0x0001c200 A8 : 0x3ffb5774 A9 : 0x3ffc1d50
 10:08:46.987 > A10 : 0x00000000 A11 : 0x400e44b0 A12 : 0x00000002 A13 : 0x00000000
 10:08:46.996 > A14 : 0x3ffb7034 A15 : 0x3ffb368c SAR : 0x0000000a EXCCAUSE: 0x0000001c
 10:08:47.004 > EXCVADDR: 0x00000000 LBEG : 0x400014fd LEND : 0x4000150d LCOUNT : 0xffffffff

Then, when it is started for the second or subsequent times, an INVALID HEADER ERROR appears next.

ShellScript
14: 31:46.606 >  rst :0x10 (RTCWDT_RTC_RESET),boot:0x13 (SPI_FAST_FLASH_BOOT)
 14:31:46.651 > invalid header:  0x26c1 fbca

If ESP32 is set to encryption even though the text is not encrypted and is in plain text, an invalid header error will occur when trying to read the plain text in encrypted mode.

A separate article will be written on this response.

It’s not so simple.

Copied title and URL
